Product Summary
The LA76810A is a VIF/SIF/Y/Deflection 1chip IC for PAL/NTSC color television sets.
Parametrics
Absolute maximum ratings: (1)Maximum supply voltage: 7.0 V; (2)Maximum supply current: 25 mA; (3)Allowable power dissipation: 1.6 W at Ta ≤ 65 ℃ *; (4)Operating temperature: -10 to +65 ℃; (5)Storage temperature: -55 to +150 ℃.
Features
Features: (1)VIF/SIF/Y/Deflection Implemented in a 1chip; (2)I2C Bus Control.

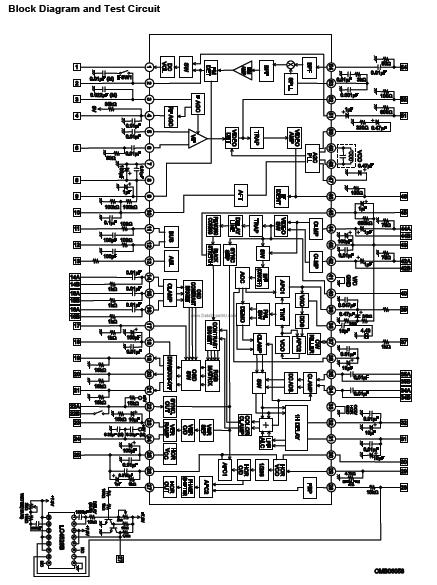

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LA76810A |
Other |
|
Data Sheet |
Negotiable |
|
||||
