Product Summary
The AT45DB161D-SU is a 2.7-volt only, serial interface Flash memory suitable for in-system reprogramming. Its 17,301,504 bits of memory are organized as 4096 pages of 528 bytes each.
Parametrics
Absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.
Features
Features: (1)Single 2.7V - 3.6V Supply; (2)Serial Interface Architecture; (3)Page Program Operation: Single Cycle Reprogram (Erase and Program), 4096 Pages (528 Bytes/Page) Main Memory; (4)Optional Page and Block Erase Operations; (5)Two 528-Byte SRAM Data Buffers ?Allows Receiving of Data while Reprogramming of Nonvolatile Memory.

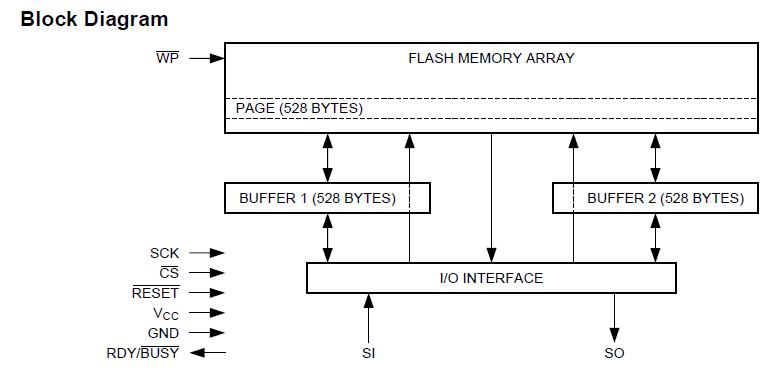

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB161D-SU |
Atmel |
Flash 16M 8 I/O Pins SPI 528B 2.5V 2.7V |
Data Sheet |
Negotiable |
|
||||
|
AT45DB161D-SU-2.5 |
Atmel |
Flash 16MB SERIAL - IND TEMP |
Data Sheet |
Negotiable |
|
||||
