Product Summary
The NRF905 is a true single chip system with fully integrated RF transceiver, 8051 compatible microcontroller and a 4 input 10bit 80ksps AD converter.
Parametrics
Absolute maximum ratings: (1)Minimum supply voltage: 1.9 V; (2)Temperature range: -40 to +85 ℃; (3)Supply current in transmit @ -10dBm output power: 11 mA; (4)Supply current in receive mode: 12.5 mA; (5)Supply current for m-controller 4MHz @ 3volt: 1 mA; (6)Supply current for ADC: 0.9 mA; (7)Maximum transmit output power: 10 dBm; (8)Transmitted data rate (Manchester-encoder embedded): 100 kbps; (9)Sensitivity: -100 dBm; (10)Supply current in power down mode: 2.5 mA.
Features
Features: (1)nRF905 433/868/915 MHz transceiver; (2)8051 compatible microcontroller; (3)4 input, 10bit 80ksps ADC; (4)Single 1.9V to 3.6V supply; (5)Small 32 pin QFN (5x5 mm) package; (6)Extremely low cost Bill of Material (BOM); (7)Internal VDD monitoring; (8)2.5μA standby with wakeup on timer or external pin.

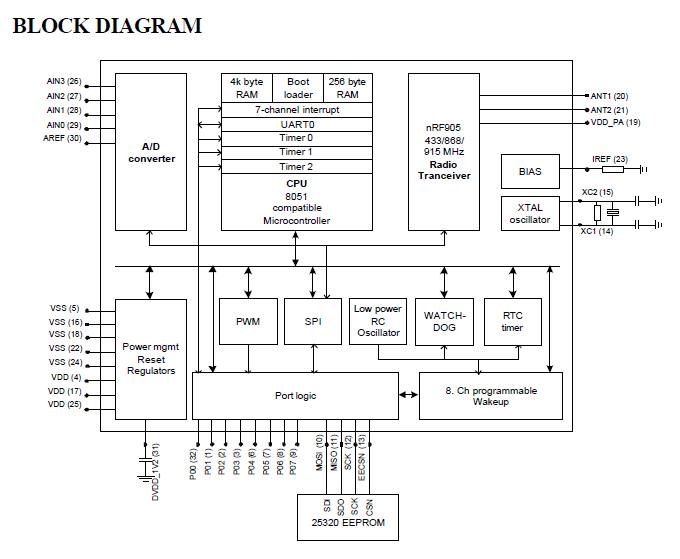

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 nRF905 |
Nordic Semiconductor |
RF Transceiver 1.9-3.6V 433/868/ 915MHz TRNSCVR |
Data Sheet |
|
|
||||||||||||
 |
nRF905-EVKIT-433 |
Nordic Semiconductor |
RF Modules NRF905 EVAL KIT 433MHZ |
Data Sheet |
|
|
||||||||||||
|
nRF905-EVKIT-868/915 |
Nordic Semiconductor |
RF Development Tools NRF905 EVAL KIT 868/915 |
Data Sheet |
|
|
||||||||||||
|
nRF905-REEL |
Nordic Semiconductor |
RF Transceiver 1.9-3.6V 433/868/ 915MHz TRNSCVR |
Data Sheet |
|
|
||||||||||||
