Product Summary
The LPC2214FBD144 is a ARM microcontroller. It is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 128/256 kB of embedded high-speed flash memory.
Parametrics
Absolute maximum ratings: (1)supply voltage (1.8 V):-0.5V to +2.5V; (2)supply voltage (3.3 V):-0.5V to +3.6V; (3)analog supply voltage (3.3 V):-0.5V to +4.6V; (4)analog input voltage:-0.5V to +5.1V; (5)input voltage 5 V tolerant I/O pins:-0.5V to +6.0V; (6)other I/O pins :-0.5V to VDD(3V3) + 0.5V; (7)supply current:100 mA; (8)ground current:100 mA; (9)junction temperature:150℃; (10)storage temperature:-65℃ to +150℃; (11)total power dissipation (per package):1.5W.
Features
Features: (1)Vectored Interrupt Controller with configurable priorities and vector addresses; (2)Configurable external memory interface with up to four banks, each up to 16 MB and 8/16/32-bit data width; (3)Up to 112 general purpose I/O pins (5 V tolerant). Up to nine edge or level sensitive external interrupt pins available; (4)60 MHz maximum CPU clock available from programmable on-chip Phase-Locked Loop with settling time of 100 μs; (5)On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz; (6)Two low power modes, Idle and Power-down; (7)Processor wake-up from Power-down mode via external interrupt; (8)Individual enable/disable of peripheral functions for power optimization.

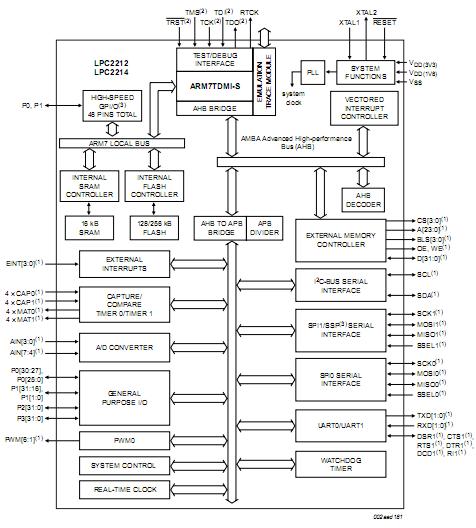

Diagrams
