Product Summary
The U2010B is a Phase-control IC. It is designed as a phase-control circuit in bipolar technology for motor control applications with load-current feedback and overload protection. It enables load-current detection and has a soft-start function as well as reference voltage output.
Parametrics
Absolute maximum ratings: (1)Sink current:30mA; (2)Synchronous currents:5mA; (3)Control voltage:0V to V8; (4)Input current:500μA; (5)Charging current:0.5 mA; (6)Input currents:1mA ; (7)Input voltages:0V to V8 ; (8)Overload output:1mA; (9)Storage temperature range:-40℃ to +125℃; (10)Junction temperature range:125℃; (11)Ambient temperature range:-10℃ to +100℃.
Features
Features: (1)Full-wave Current Sensing; (2)Mains Supply Variation Compensated; (3)Programmable Load-current Limitation with Over- and High-load Output; (4)Variable Soft Start; (5)Voltage and Current Synchronization; (6)Automatic Retriggering Switchable; (7)Triggering Pulse Typically 125 mA ; (8)nternal Supply-voltage Monitoring; (9)Current Requirement ≤3 mA; (10)Temperature-compensated Reference Voltage.

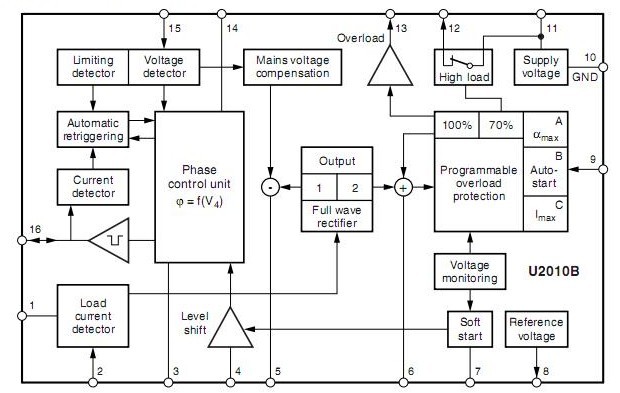

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 U2010B |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
U2010B-M |
|
IC PHASE-CONTROL FDBK/OTP 16-DIP |
Data Sheet |
Negotiable |
|
||||||
|
U2010B-MFP |
|
IC PHASE-CONTROL FDBK/OTP 16SOIC |
Data Sheet |
Negotiable |
|
||||||
|
U2010B-MFPG3 |
|
IC PHASE-CONTROL FDBK/OTP 16SOIC |
Data Sheet |
Negotiable |
|
||||||
|
U2010B-MFPG3Y |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Phase Switch Ctrl. |
Data Sheet |
|
|
||||||
|
U2010BMFPY |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
U2010B-MFPY |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Phase Switch Ctrl. |
Data Sheet |
|
|
||||||
|
U2010B-MY |
Atmel |
Motor / Motion / Ignition Controllers & Drivers Phase Switch Ctrl. |
Data Sheet |
|
|
||||||
