Product Summary
The HT25LC512 is a CMOS 64K×8-Bit SPI Serial OTP EPROM.
Parametrics
Absolute maximum ratings: (1)Operation Temperature Commercial: 0℃ to +70℃; (2)Storage Temperature: -65℃ to 125℃; (3)Applied VCC Voltage with Respect to VSS: -0.6V to 7.0V; (4)Applied Voltage on Input Pin with Respect to VSS: -0.6V to 7.0V; (5)Applied Voltage on Output Pin with Respect to VSS: -0.6V to VCC+0.5V; (6)Applied VPP Voltage with Respect to VSS: -0.6V to 13.5V.
Features
Features: (1)Serial interface architecture; (2)Serial Peripheral Interface (SPI) compatible - modes 0 and 3; (3)CMOS and TTL compatible inputs and outputs; (4)Pin assignment compatible with AT25F512; (5)Commercial temperature range (0C to +70C); (6)8-pin SOP package.

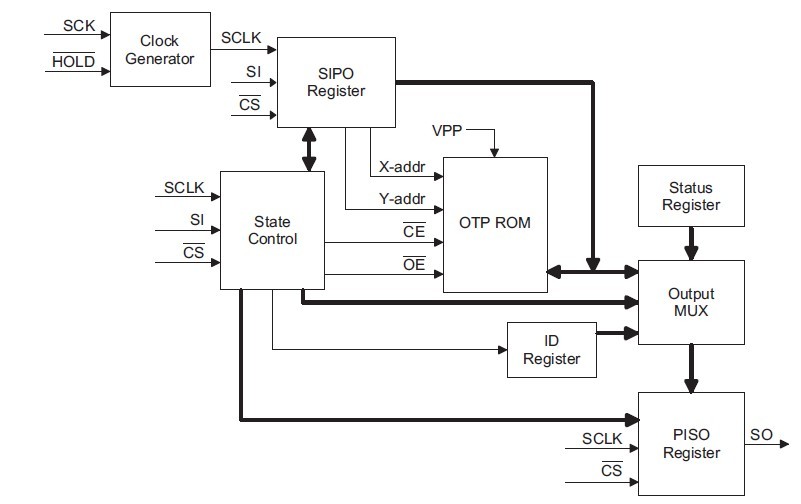

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HT25LC512 |
Other |
|
Data Sheet |
Negotiable |
|
||||
